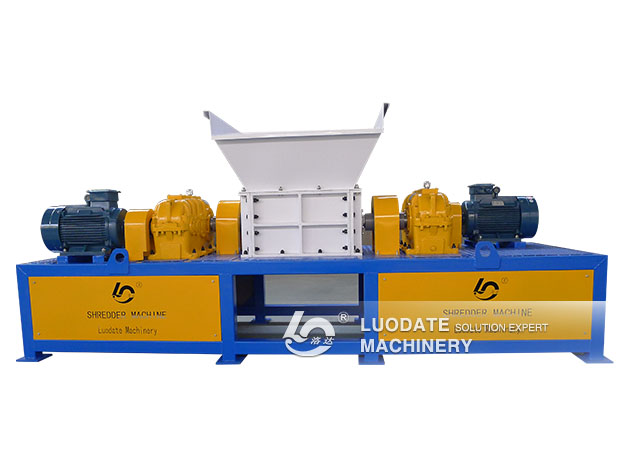

Type: LDT series Carboard Shredder
Power(kw): 15 – 160
Capacity(t/h): 5 – 60
Application: Used for all kinds of cartons, various shapes carboard boxes and so on.
Waste paper shredder (crusher) multi-function shredder is the new high-speed and efficient paper shredder, which designed by our technical staff with many years of research and production experience.
The design of the paper shredder is novel in design and compact in structure. It is designed and manufactured mainly for high tensile strength and easy winding of waste paper, plastic, sponge, fiberglass and rag.
Special equipment for waste paper waste, unique design ideas and processing technology, can make any shape of waste paper ,plastic, sponge, fiberglass, rags and other material waste broken and open repidly，then collected to ensure environmental protection without dust.
For different material properties, flexible choice of equipment knife roll, enhance the shredding effect.
The thickness and the number of blade can be changed according to different materials.When crushing hollow material, can be equipped with pressure device to increase production.
The thickness of the shredder blade is divided into 15mm, 20mm, 40mm, 50mm, 75mm, 100mm， can select the blade according to the particle size after crushing.
| Model | Main Shaft (pcs) | Blades Size (mm) | Blades (pcs) | Reducer (sets) | Motor Power (kw) | Main Shaft Speed (r/min) | Dimensions (mm) |
| LDT600 | 2 | Φ250*10 | 48 | 400*2 | 15*2 | 18-25 | 1450*870*2200 |
| 2 | Φ250*20 | 24 | 400*2 | 15*2 | 18-25 | 1450*870*2200 | |
| LDT800 | 2 | Φ250*20 | 32 | 400*2 | 30*2 | 18-25 | 2150*870*2200 |
| 2 | Φ250*30 | 18 | 650*2 | 30*2 | 18-25 | 3400*1250*2200 | |
| LDT1000 | 2 | Φ350*30 | 28 | 650*2 | 37*2 | 18-25 | 3400*1250*2200 |
| 2 | Φ350*40 | 20 | 750*2 | 37*2 | 18-25 | 4150*1250*2200 | |
| LDT1200 | 2 | Φ350*30 | 38 | 650*2 | 55*2 | 18-25 | 4150*1250*2200 |
| 2 | Φ350*40 | 28 | 750*2 | 55*2 | 18-25 | 4150*1250*2200 | |
| LDT1500 | 2 | Φ400*40 | 36 | 750*2 | 75*2 | 18-25 | 4150*1250*2200 |
| 2 | Φ400*50 | 28 | 850*2 | 75*2 | 18-25 | 4150*1250*2200 | |
| LDT2000 | 2 | Φ530*50 | 38 | 850*2 | 90*2 | 18-25 | 5250*1780*2200 |
| 2 | Φ600*60 | 32 | 850*2 | 90*2 | 18-25 | 5250*1780*2200 | |
| LDT2500 | 2 | Φ600*60 | 60 | 1000*2 | 110*2 | 18-25 | 7500*3200*3800 |
| 2 | Φ600*75 | 50 | 1000*2 | 110*2 | 18-25 | 7500*3200*3800 | |
| LDT3000 | 2 | Φ600*75 | 56 | 1200*2 | 132*2 | 18-25 | 8600*3500*4000 |
| 2 | Φ600*100 | 44 | 1200*2 | 132*2 | 18-25 | 8600*3500*4000 |
